按 GSD 框架 .planning/milestones/digital_human_rtc/ 规划完成 Phase 1。 源代码全部保留，通过 Kconfig 开关 + CMakeLists 条件编译 + #ifdef 调用点保护 实现"吧唧模式不进固件但代码可恢复"。 ## 核心变更 ### Kconfig 开关（默认关闭） - 新增 CONFIG_BAJI_BADGE_MODE（main/Kconfig.projbuild） - sdkconfig.defaults 默认 =n - =y 时恢复双模式（电子吧唧 + AI 对话） - =n 时仅 AI 数字人 RTC 模式 ### CMakeLists 剥离（剥离式不重写） - 9 个 dzbj/ 吧唧专属 + 9 个 ui/screens/ 吧唧 UI 进入 if(CONFIG_BAJI_BADGE_MODE) 条件块 - 公共保留: dzbj/lcd.c, ai_chat_ui.c, sprite_demo.c, dual_gif_demo.c, bg_gif_demo.c, pages_pwm.c, dzbj_init.c, fatfs.c - 修正 PLAN 漏判：dzbj_init/fatfs 公共化（AI 模式调用 dzbj_hw_display_init/DecodeImg） ### 调用点 #ifdef 保护 - application.cc: L20 include, L63-66 background_task, L536 device_mode 分支 - movecall_moji_esp32s3.cc: dzbj headers, init_spiffs_image_list extern, dzbj_boot_click_handler extern, device_mode_is_badge 分支, InitializeBadgeMode, InitializeBadgeModeButtons, mode_switch_combo 注册, device_mode_in_switch_suppress - 保留公共 extern: ai_chat_screen_init, ai_chat_resume_animation, pwm_init ### 整体文件级 #ifdef 包裹 - dzbj/dzbj_button.c/h - dzbj/sleep_mgr.c - sleep_mgr/include/sleep_mgr.h ### 6 个文件显式 #include "sdkconfig.h" - ESP-IDF 不会 force-include，必须手动 include 才能拿到 CONFIG_* 宏 ## G7 验收双向编译 - =n 模式 build: ✅ EXIT=0（数字人 RTC 单一形态） - =y 模式 build: ✅ EXIT=0（双模式恢复可用） ## 固件大小变化 | 段 | =n | =y | 节省 | |----|-----|------|------| | .text | 2.03 MB | 2.06 MB | 27 KB | | .rodata | 2.48 MB | 3.87 MB | 1.39 MB | | Total | 4.63 MB | 6.05 MB | 1.45 MB | ## GSD 文档（同时提交） - .planning/milestones/digital_human_rtc/MILESTONE.md - .planning/milestones/digital_human_rtc/ROADMAP.md - .planning/milestones/digital_human_rtc/INTEL.md - .planning/milestones/digital_human_rtc/phases/phase_01_kconfig_isolation/PLAN.md - .planning/milestones/digital_human_rtc/phases/phase_01_kconfig_isolation/SIZE_REPORT.md - .planning/milestones/digital_human_rtc/phases/phase_01_kconfig_isolation/BADGE_MODE_ISOLATION_MAP.md - 编译大小原始数据: size_*.txt ## 已知事项 - =n 固件 4.63 MB 仍 > 4 MB 目标，Phase 2 调整分区 + Phase 3 物理移除图片资源解决 - main/dzbj/ 下所有源文件完整保留，无任何物理删除
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia

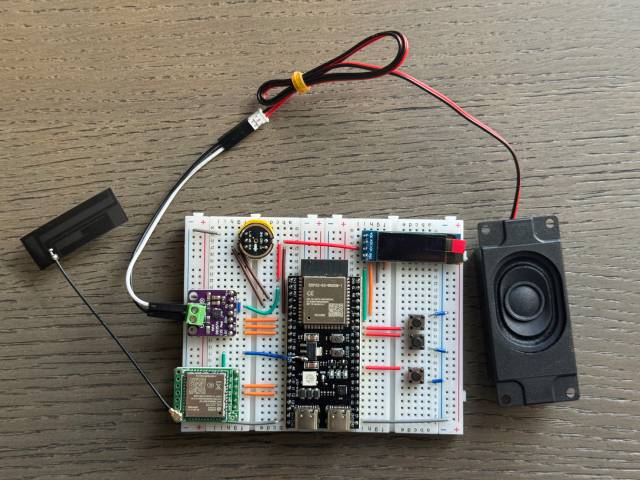

Breadboard demonstration:
Supported Open Source Hardware

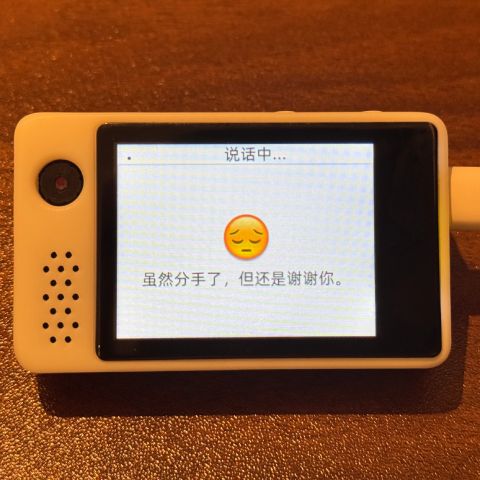

- LiChuang ESP32-S3 Development Board

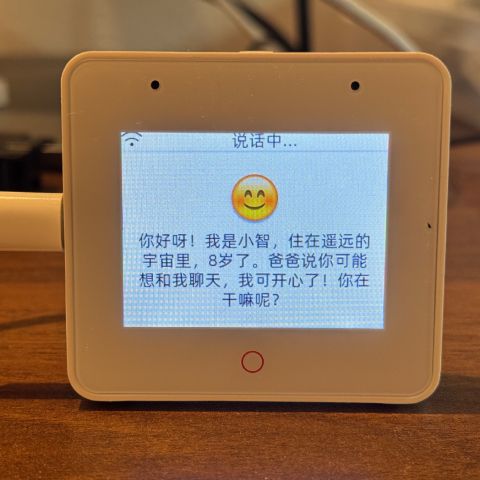

- Espressif ESP32-S3-BOX3

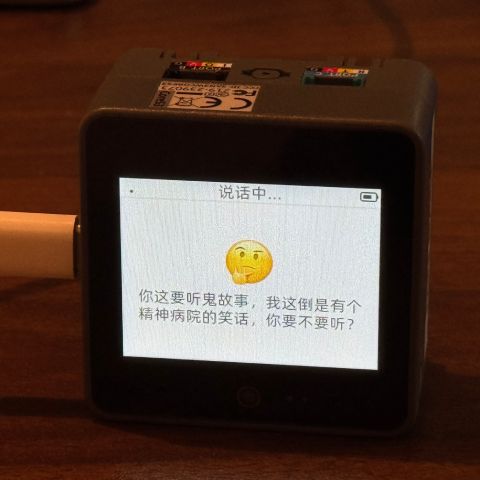

- M5Stack CoreS3

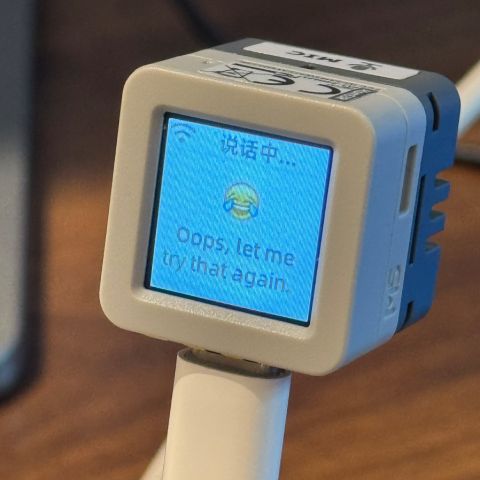

- AtomS3R + Echo Base

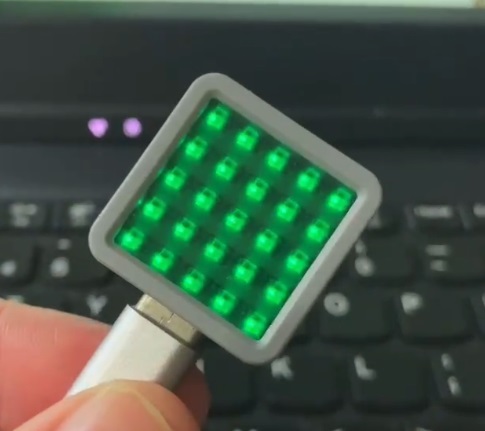

- AtomMatrix + Echo Base

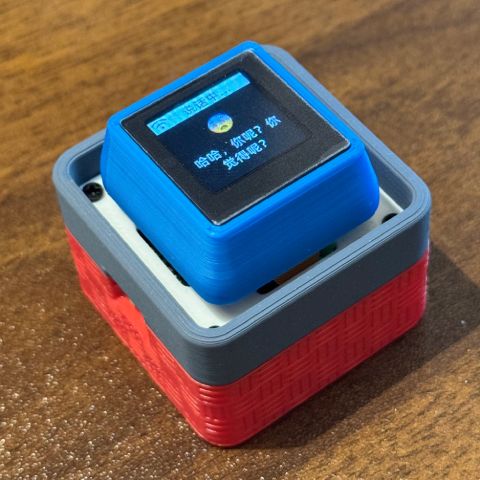

- Magic Button 2.4

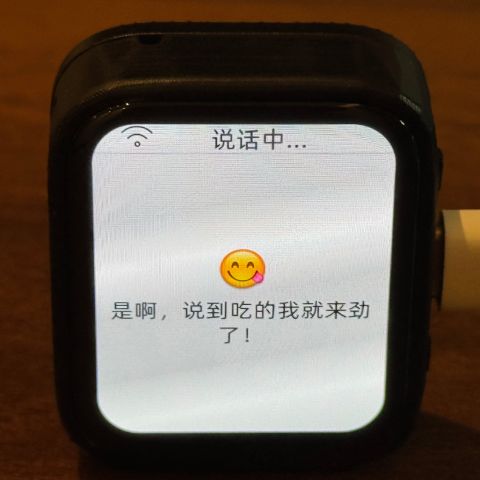

- Waveshare ESP32-S3-Touch-AMOLED-1.8

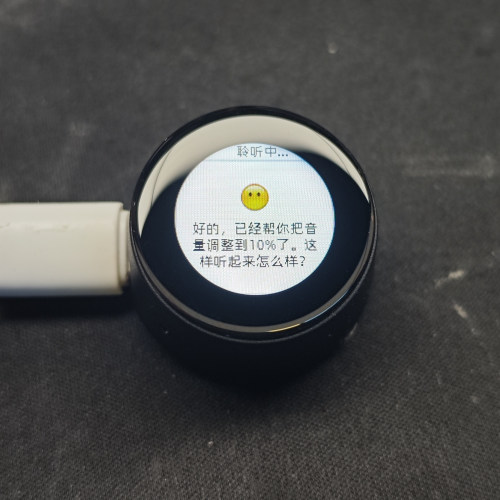

- LILYGO T-Circle-S3

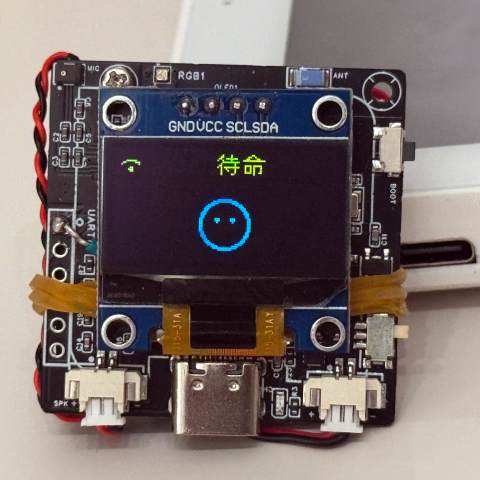

- XiaGe Mini C3

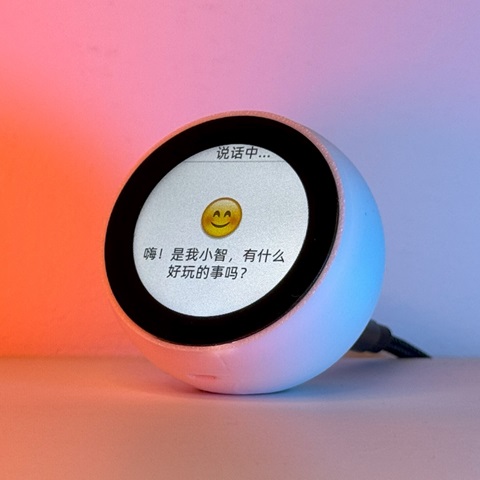

- Moji XiaoZhi AI Derivative Version

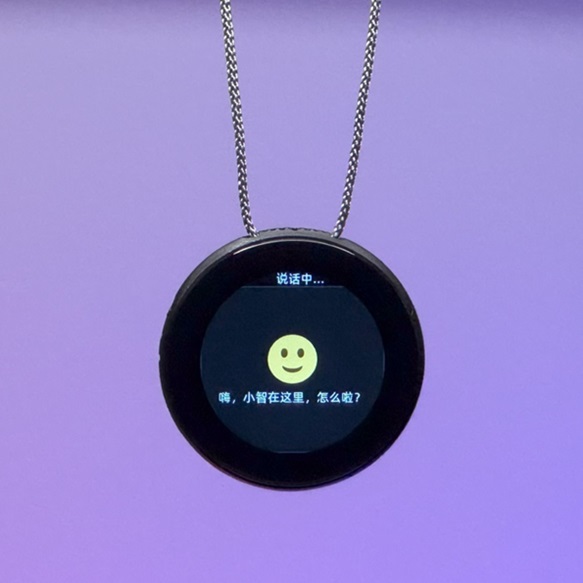

- CuiCan AI pendant

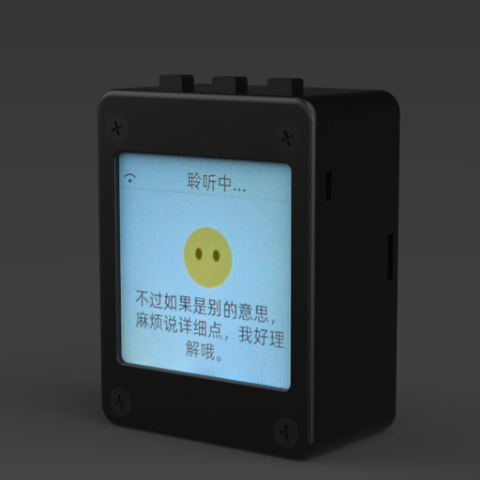

- WMnologo-Xingzhi-1.54TFT

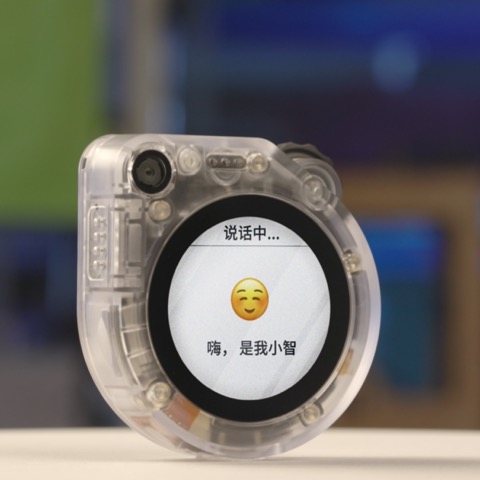

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
