1. 固定 RTC 数字人链路使用 ai_chat_ui_eaf，双模式开启后不再回退 LVGL/GIF 旧 RTC UI。 2. 保留电子吧唧 LVGL/SquareLine UI，只在电子吧唧运行模式启动 LVGL，避免与 EAF 抢同一 LCD flush。 3. 拆分 dzbj_hw_display_init 与 dzbj_display_init，AI/配网只初始化 LCD Touch 硬件，电子吧唧再启动 LVGL UI。 4. 配网模式使用 EAF 最小显示栈显示中文提示，请使用APP 蓝牙配网，不加载数字人资源和动画。 5. 开启 CONFIG_BAJI_BADGE_MODE，形成 RTC 数字人对话与电子吧唧图片显示双模式固件。 6. 电子吧唧图片扫描跳过 Background_360x360.jpg，避免 RTC 数字人背景进入吧唧图片列表。 7. BLE 图传在 BLE 5.0 关闭时跳过 2M PHY API，保持 legacy 1M PHY 兼容配网和图传。 8. sdkconfig.defaults 同步 BLE 内存优化，限制连接数和缓存，保留 GATT 与扫描能力。 9. 移除 ota.cc 编译和 app_update 直接依赖，双模式固件不创建 OTA 检查任务。 10. Ota 接口改为禁用 stub，保留接口兼容但不执行升级和版本检查。 11. Board 上报 JSON 的 OTA label 改为 disabled，避免依赖 OTA 运行分区。 12. partitions.csv 改为 factory 单 app 分区，扩大 app 到 0x900000，并扩大 storage 到 0x6F0000。 13. application 去除 OTA 任务句柄和服务器时间依赖，减少运行时资源占用。 14. system_info 去除 esp_ota_ops 依赖，配合无 OTA 分区配置。 15. 同步最新烧录运行日志，记录本轮双模式与配网测试结果。
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia

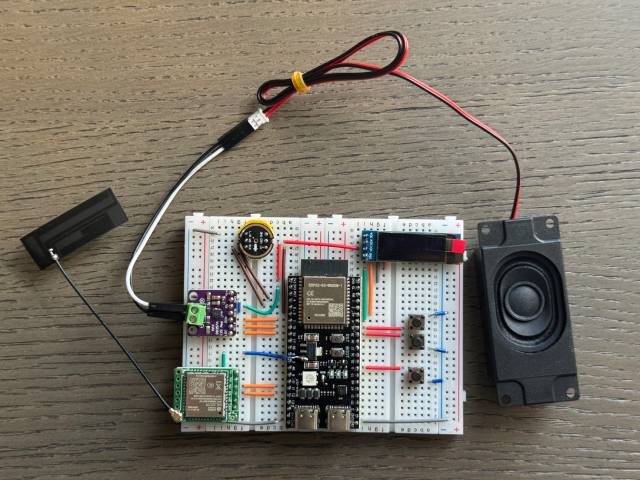

Breadboard demonstration:
Supported Open Source Hardware

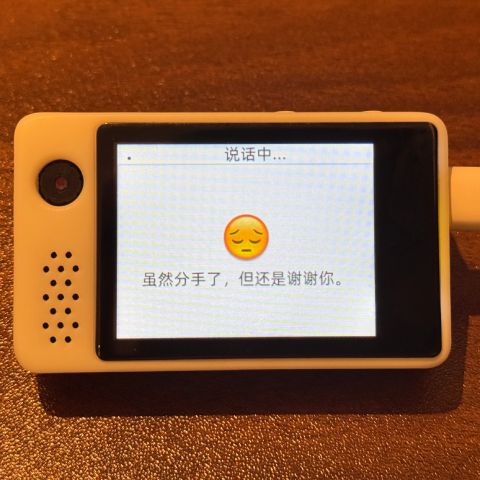

- LiChuang ESP32-S3 Development Board

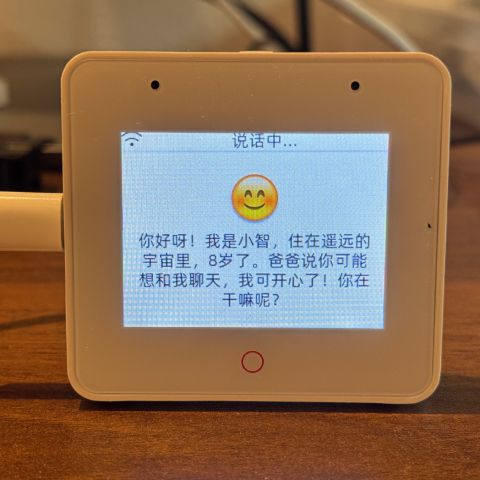

- Espressif ESP32-S3-BOX3

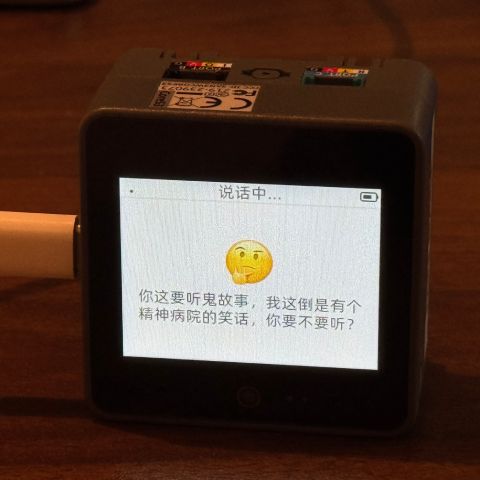

- M5Stack CoreS3

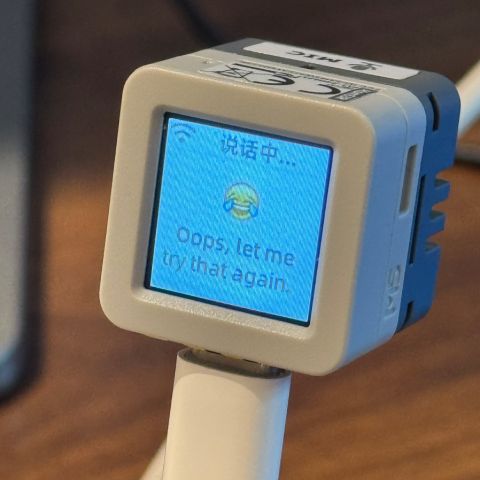

- AtomS3R + Echo Base

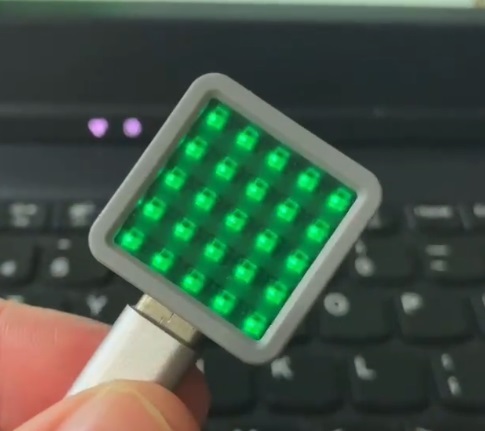

- AtomMatrix + Echo Base

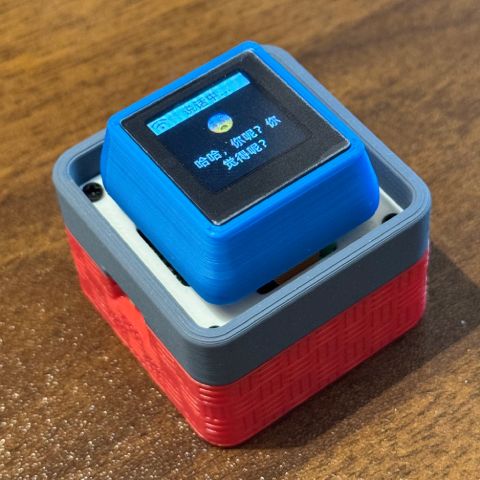

- Magic Button 2.4

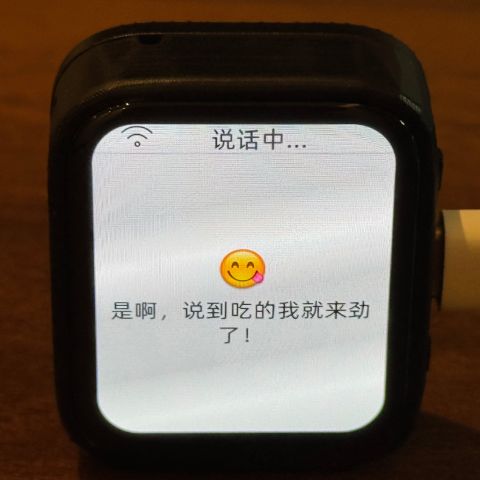

- Waveshare ESP32-S3-Touch-AMOLED-1.8

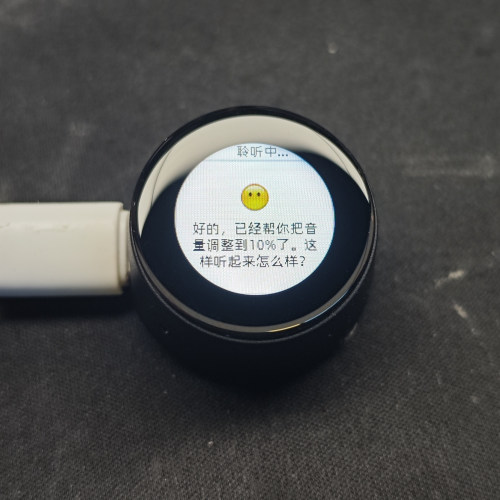

- LILYGO T-Circle-S3

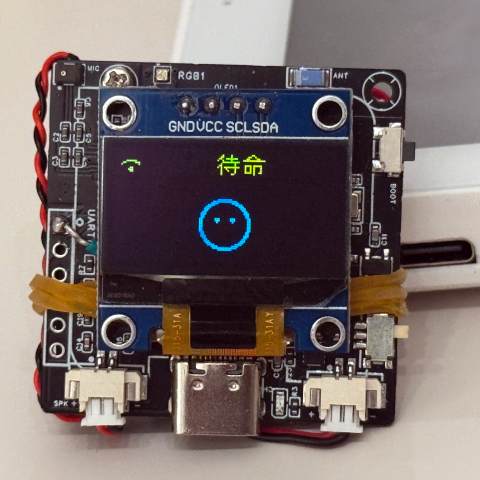

- XiaGe Mini C3

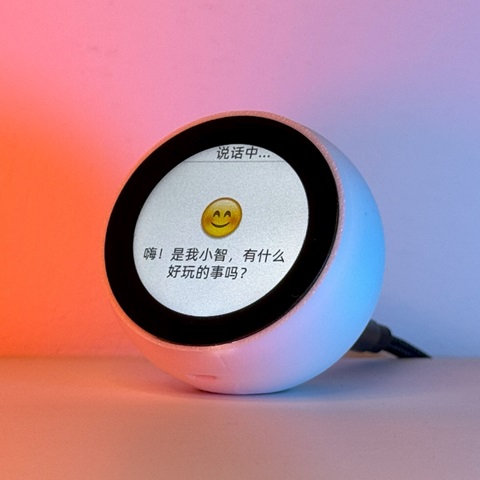

- Moji XiaoZhi AI Derivative Version

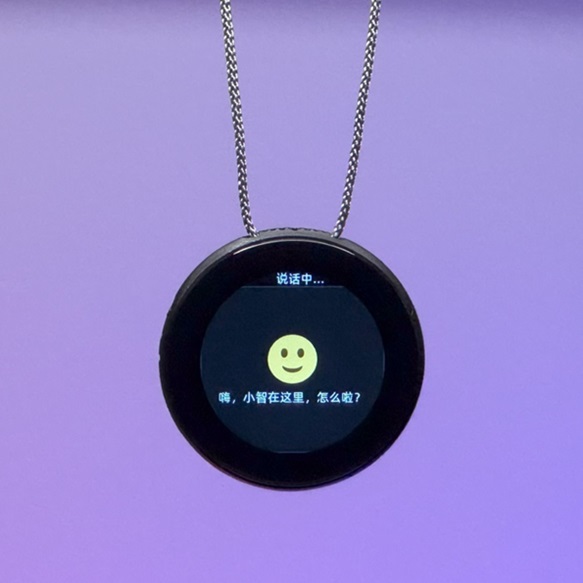

- CuiCan AI pendant

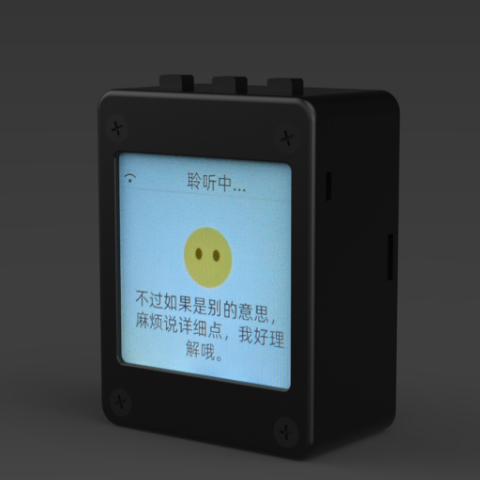

- WMnologo-Xingzhi-1.54TFT

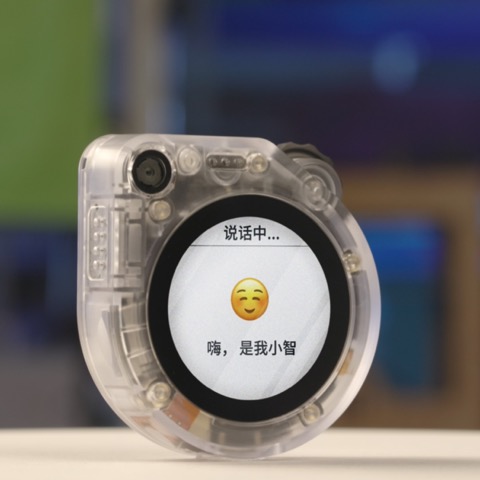

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
