按 GSD 框架 .planning/milestones/digital_human_rtc/phases/phase_06_idle_hibernate/ 规划完成 Phase 6 软退出 RTC 机制。替代旧的"40s 硬重启退出"方案。 ## 核心变更 ### 1. 倒计时刷新（B+C 双源方案） | 方案 | 监听源 | 实施位置 | 状态 | |------|--------|---------|------| | A 扬声器流 | I2S/PCM 输出 | application.cc audio output 3 处 | **宏关闭**（PHASE6_ENABLE_AUDIO_FALLBACK） | | **B 字幕监听** | RTC subtitle 消息 | application.cc:1300 subtitle 分支 | **启用** | | **C 智能体状态** | RTC conv_status 消息 | application.cc:1260 conv_status 分支 | **启用** | 复用现有 DIALOG_IDLE_COUNTDOWN_SECONDS=40 不新增常量。 ### 2. 真退出 RTC 房间（释放 License） - 新增 Protocol 基类虚函数 LeaveRoom（默认回退到 CloseAudioChannel） - VolcRtcProtocol::LeaveRoom 覆写：volc_rtc_stop + volc_rtc_destroy - 火山官方文档明确：真退房必须 leaveRoom + destroyRTCEngine - CloseAudioChannel 只 stop 不够（真人仍在房间继续计费） - 服务端 AI 任务在 180s 内自动清理（火山平台机制） ### 3. EnterIdleHibernate / WakeFromHibernate EnterIdleHibernate 流程（严格顺序）： 1. protocol_->LeaveRoom() # 真退房 2. codec->EnableInput/Output(false) # 重置 codec 状态机 3. recorder_pipeline_close() 4. hibernating_.store(true) # 关键：先设标志阻止 PowerSaveTimer 5. esp_pm_configure(light_sleep=false) # 双保险禁用 Light Sleep 6. SetDeviceState(kDeviceStateIdle) 7. idle_cycles_++ + NVS 持久化 8. 字幕"已自动退出RTC对话，按BOOT键重新连接RTC"（5 次重试间隔 200ms） WakeFromHibernate 流程： 1. 检查 idle_cycles_ >= 50 → 硬重启清理碎片（兜底） 2. 清空字幕 3. ToggleChatState → OpenAudioChannel → 自动重建 rtc_handle_ 4. RTC 重新加入房间（实测 2-3s 完成） ### 4. CanEnterSleepMode 加 hibernating 检查 防止 hibernate 期间 PowerSaveTimer 触发 esp_pm_configure(light_sleep=true) 导致 I2C 总线进入低功耗 → 唤醒后 ES7210/ES8311 通信失败 abort。 ### 5. Dialog Watchdog 触发动作改造 旧：esp_restart() 整机重启（黑屏 15-25s + WiFi 重连） 新：Schedule(EnterIdleHibernate) 软退房（不熄屏 + 字幕提示） ### 6. BOOT 唤醒走 WakeFromHibernate 路径 iot_button 回调中检测 IsHibernating()，派发到独立 task 执行 WakeFromHibernate（避免阻塞 esp_timer 任务，CLAUDE.md 经验）。 ### 7. OpenAudioChannel 适配重建 LeaveRoom 销毁 rtc_handle_ 后，OpenAudioChannel 头部检测 NULL 触发 Start() 异步重建，轮询 5s 等待就绪。NVS 缓存 device_secret 所以重建通常 100ms 完成。 ## 实测验证（用户协作） | 阶段 | 时间 | |------|------| | 40s 触发软休眠 | ✅ | | LeaveRoom 真退房 | ✅ "✓ 已真退出 RTC 房间（leaveRoom + destroyRTCEngine）" | | 屏幕保持 + 字幕显示 | ✅ "已自动退出RTC对话，按BOOT键重新连接RTC" | | BOOT 按键唤醒 | ✅ | | RTC 实例重建 | ✅ 100ms | | RTC 重新加入房间 | ✅ 2-3s | | 连续 2 次软休眠+唤醒 | ✅ 无 abort/I2C 失败 | | 时间对比 | 旧硬重启 15-25s → 软休眠 3-5s（省 80%） | ## 6 个关键踩坑修复（详见 HIBERNATE_REPORT.md） 1. codec 状态机未重置 → 唤醒后 I2C abort 2. PowerSaveTimer Light Sleep 干扰 I2C 总线 3. hibernating_ 设置时序错误 4. dynamic_cast 在 -fno-rtti 下编译失败 → 改基类虚函数 5. LeaveRoom 后 OpenAudioChannel 直接失败 → 加重建逻辑 6. 字幕 LVGL 锁竞争 → 推迟到最后 + 5 次重试 ## 文档产出（同时提交） - .planning/.../phase_06_idle_hibernate/PLAN.md（含实施变更记录 V1-V6） - .planning/.../phase_06_idle_hibernate/HIBERNATE_REPORT.md（验证报告） - .planning/.../ROADMAP.md（Phase 1-5 ✅ + Phase 6 进行中状态更新） - docs/Rtc_AIavatar/数字人表情渲染方案_云端预渲染+BLE+OTA.md 新增第 19 章 RTC 空闲倒计时方案选型与软退出（9 小节） - docs/Rtc_AIavatar/RTC软退出方案_移植参考.md 完整移植参考（10 章 + 3 附录，可移植到其他火山 RTC 项目） - docs/Rtc_AIavatar/音频卡顿_全局资源分析.md 全局资源分析 + 13 项优化建议（不改代码）
dzbj @ 9223fd5a7d
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia

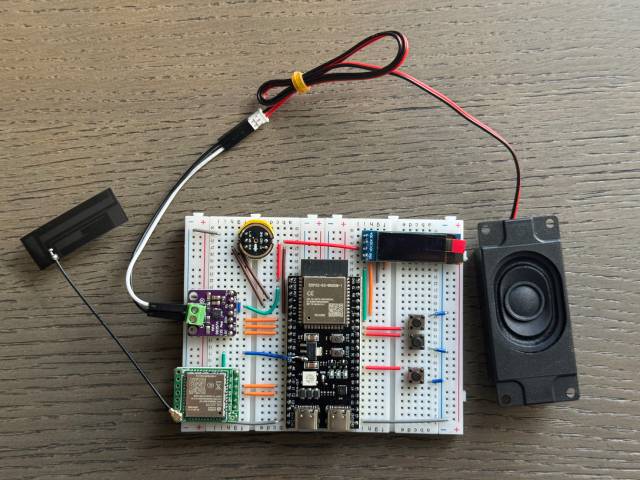

Breadboard demonstration:
Supported Open Source Hardware

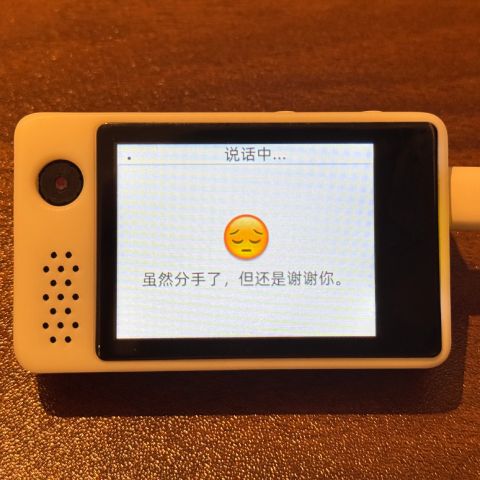

- LiChuang ESP32-S3 Development Board

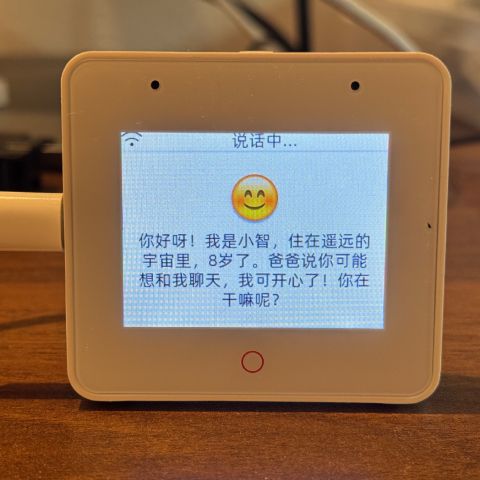

- Espressif ESP32-S3-BOX3

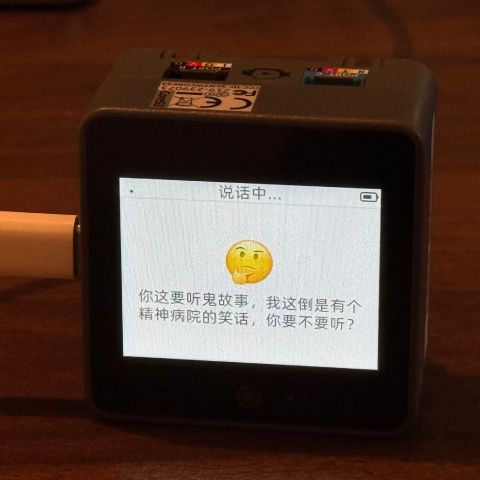

- M5Stack CoreS3

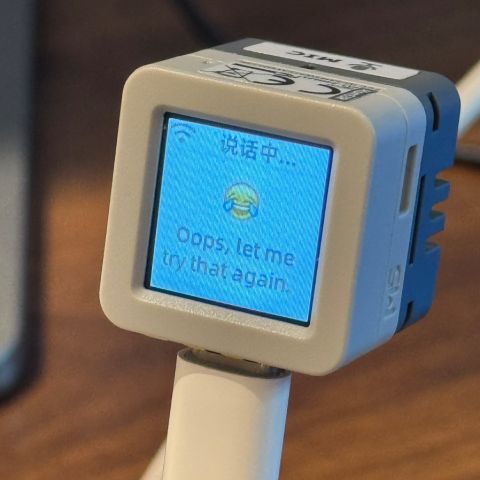

- AtomS3R + Echo Base

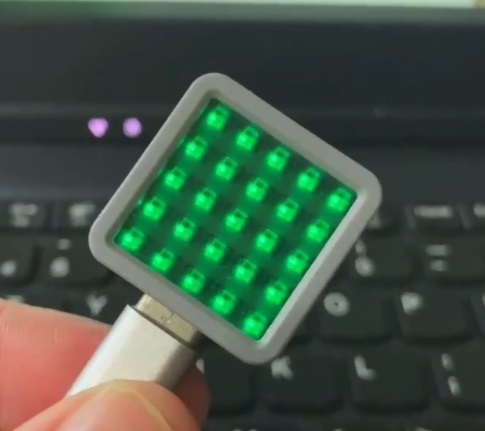

- AtomMatrix + Echo Base

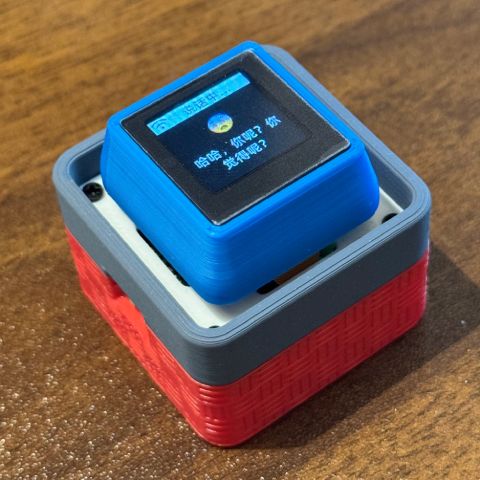

- Magic Button 2.4

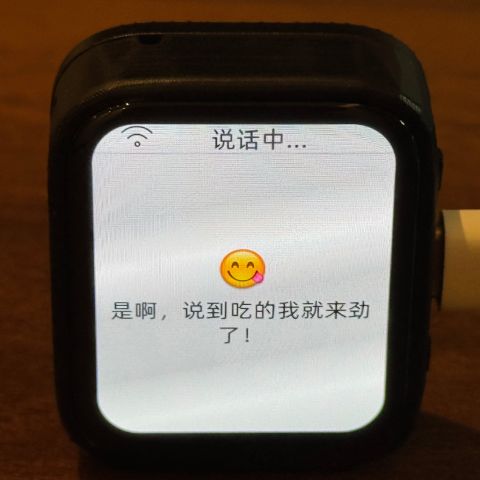

- Waveshare ESP32-S3-Touch-AMOLED-1.8

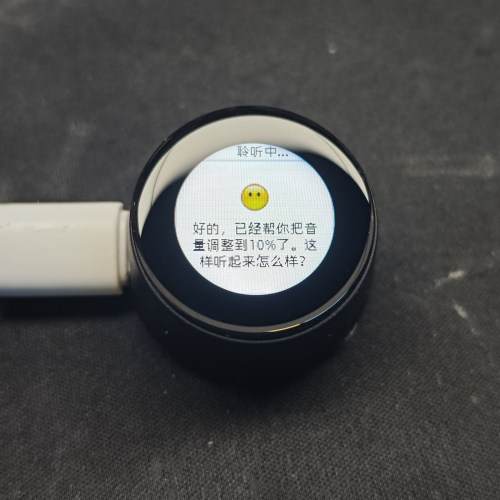

- LILYGO T-Circle-S3

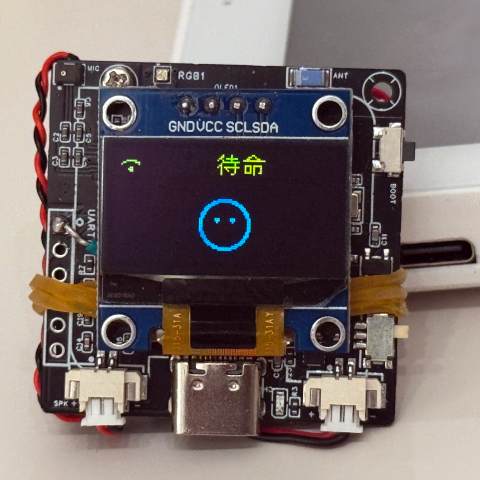

- XiaGe Mini C3

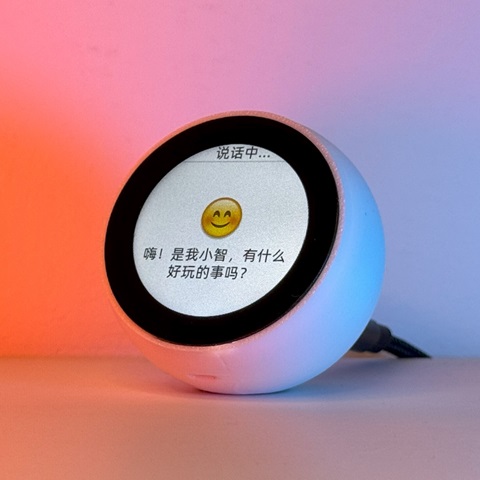

- Moji XiaoZhi AI Derivative Version

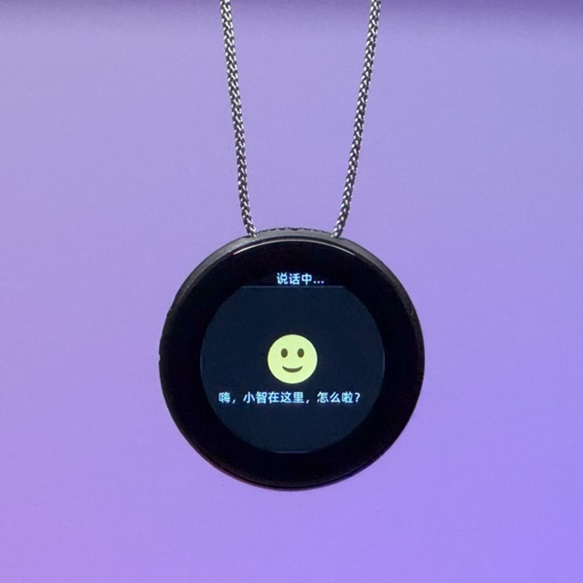

- CuiCan AI pendant
- WMnologo-Xingzhi-1.54TFT

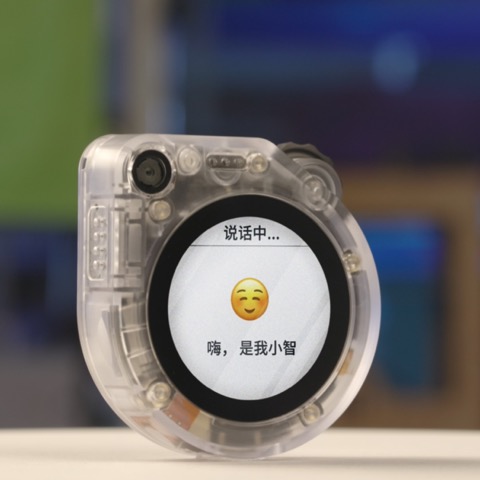

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
