数字人从原本 m06+m07 两张 EAF 扩展到 m01~m08 八张, 通过 ezgif 240×320 +
抽帧 N=3 + EAF Packer 配置, 8 张 EAF 总和压缩到 4.32 MB, SPIFFS 当前
4.94 MB 分区直接装下, 无需扩分区也不丢 OTA 升级能力.
main/dzbj/ai_chat_ui_eaf.c:
- 新版/旧版 MMAP 自动检测 (header[8] == 0x14 → entry 32B; 0x10 → 28B),
兼容在线 EAF Packer 两种导出格式 (FSIZE/FOFFSET 偏移自动适配).
- find_cache_index_by_name 加 fallback: 找不到精确匹配时返回 cache[0],
PoC 阶段单张 EAF 也能验证全部情绪触发.
- emotion_map 22 情绪 → 8 张 EAF 重排:
* 默认/积极组 12 → m01..m05 均分 (每张 2-3 种)
* 思考/疲倦组 5 → m06
* 负面/严肃组 3 → m07
* 惊讶组 2 → m08
- 数字人对齐 GFX_ALIGN_CENTER → GFX_ALIGN_BOTTOM_MID, 240×320 在
360×360 圆屏贴底显示, 顶部 40px 透明露出背景图, 视觉跟之前
360×360 全屏 EAF 一致 (脚部贴底, 字幕 z-index 上层覆盖底部 56px).
spiffs_image:
- hiyori-assets.bin: 956 KB (m06+m07) → 4.53 MB (m01~m08 + index.json)
- 删除原 GIF (hiyori_m{03,06,07}.gif), EAF 已替代不需要烧到设备.
实测数据 (Baji 2026-05-20):
m01=814KB m02=516KB m03=563KB m04=559KB m05=606KB m06=423KB m07=379KB m08=566KB
8 张 EAF 总和: 4.32 MB
SPIFFS 占用: 4.58 MB / 4.64 MB 可用 = 1.3% 余量 (临界, 未来加资源需要规划)
Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia

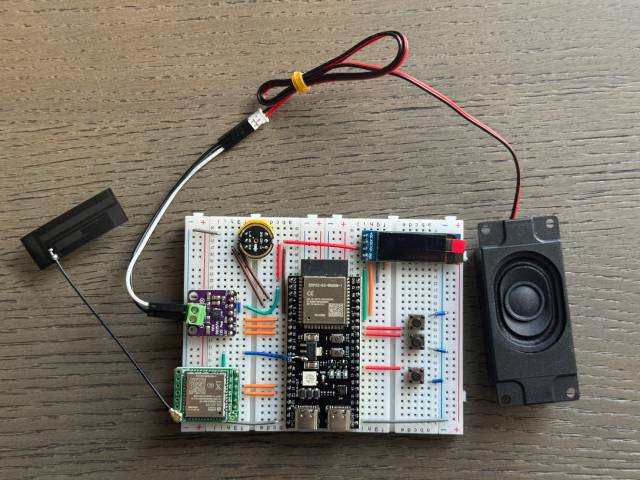

Breadboard demonstration:
Supported Open Source Hardware

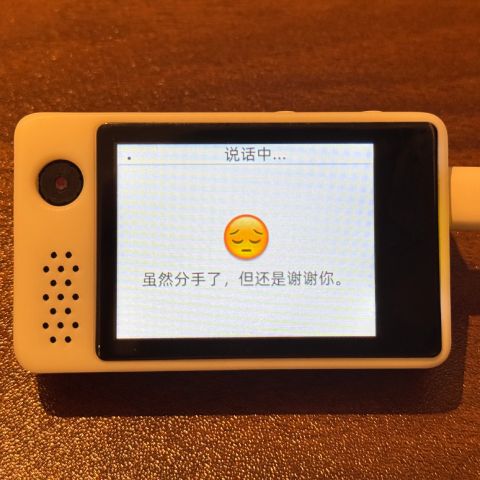

- LiChuang ESP32-S3 Development Board

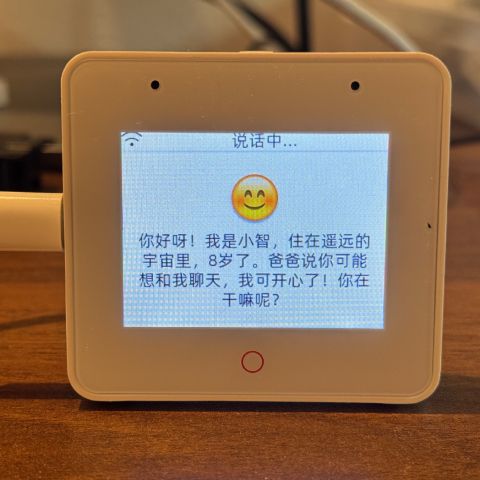

- Espressif ESP32-S3-BOX3

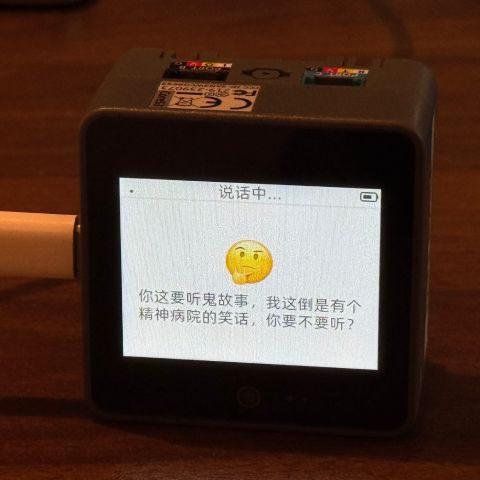

- M5Stack CoreS3

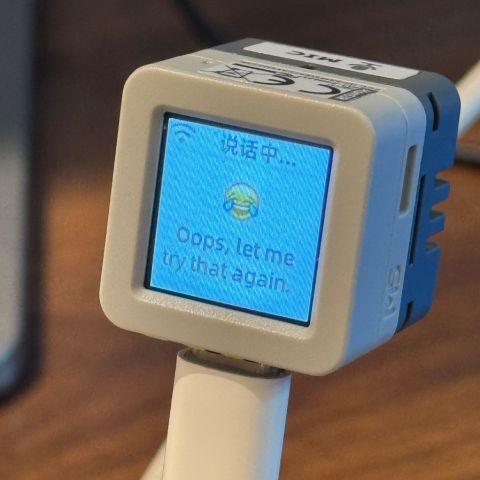

- AtomS3R + Echo Base

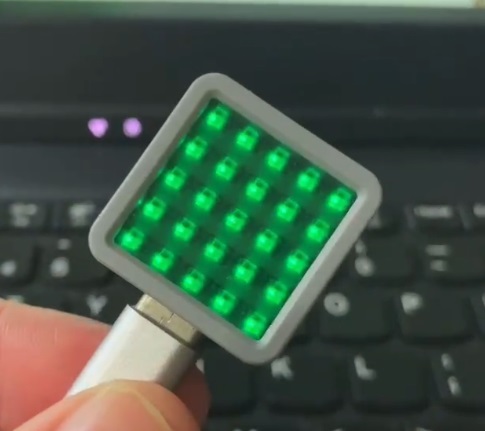

- AtomMatrix + Echo Base

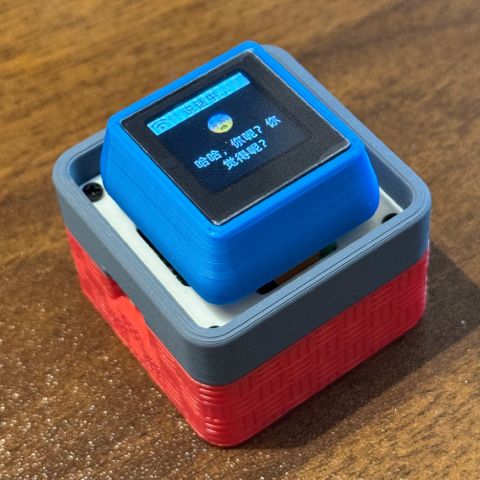

- Magic Button 2.4

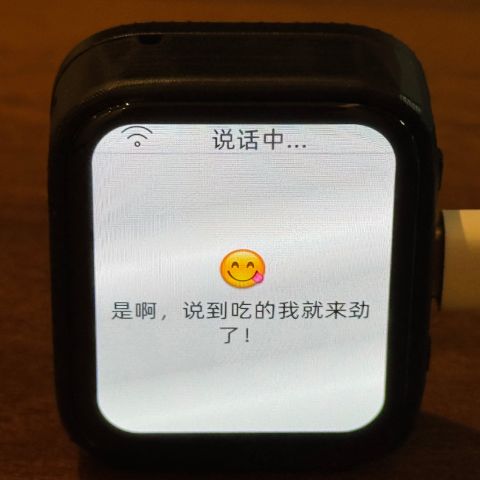

- Waveshare ESP32-S3-Touch-AMOLED-1.8

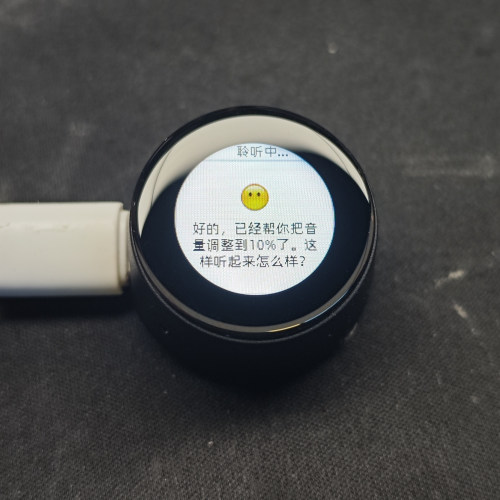

- LILYGO T-Circle-S3

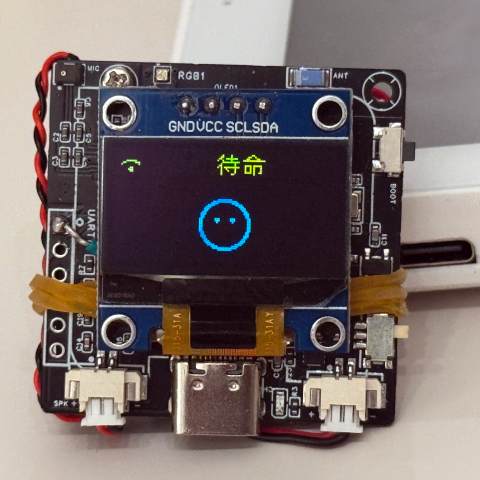

- XiaGe Mini C3

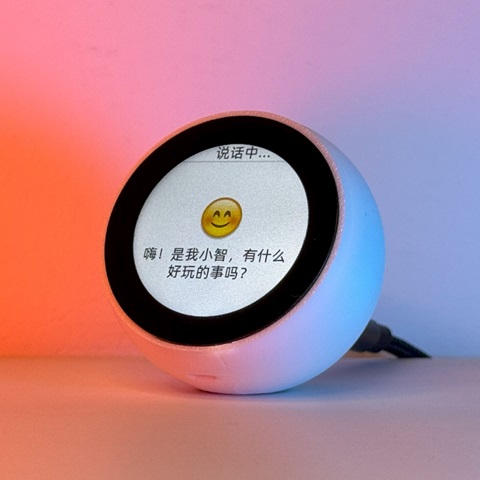

- Moji XiaoZhi AI Derivative Version

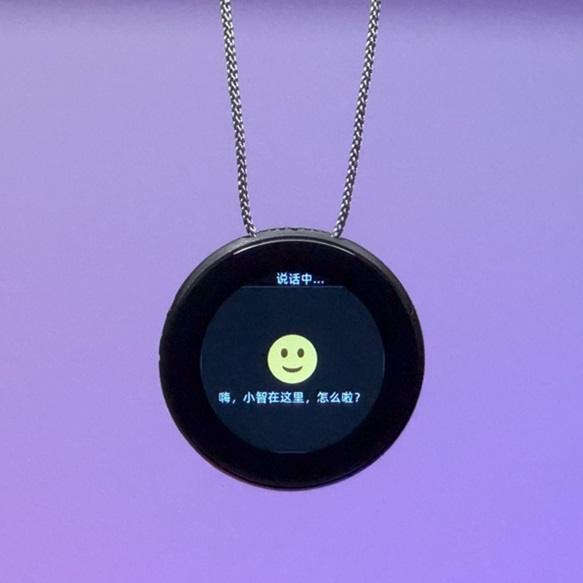

- CuiCan AI pendant

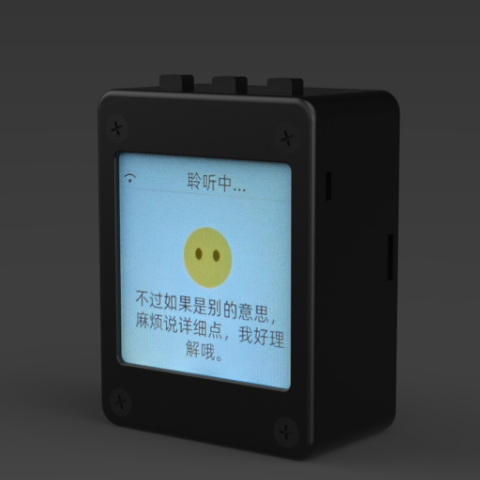

- WMnologo-Xingzhi-1.54TFT

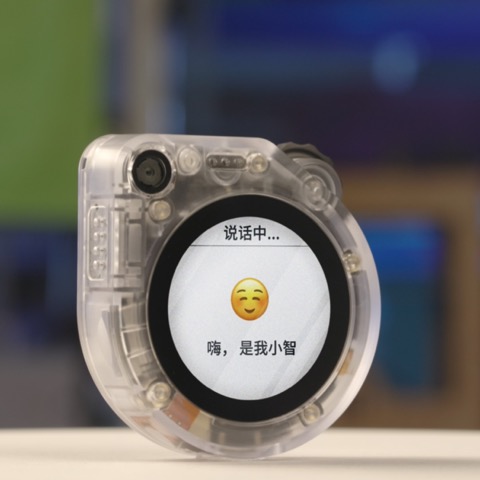

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
