阶段1: 将 dzbj 项目的 LVGL 8.3.11 LCD 显示集成到 AI小智 主项目， 开机显示 ScreenHome 界面，同时优化配网模式下的内存使用， 确保 WiFi+BLE+LVGL 三者共存运行。 ## 新增功能 ### dzbj 显示模块集成 - 新增 main/dzbj/ 目录，移植 LCD 驱动(ST77916 QSPI)、触摸驱动(CST816S)、 LVGL 初始化和 SquareLine Studio UI 界面 - I2C 总线共享：dzbj 触摸控制器复用主项目的 I2C_NUM_1 总线 - GPIO 冲突解决：LED(GPIO21)、Touch1(GPIO1)、Touch4(GPIO7) 改为 NC， 电池 ADC 从 GPIO6 改为 GPIO3 - 添加 LVGL、esp_lcd_st77916、esp_lcd_touch_cst816s 等组件依赖 - managed_components 纳入版本管理 ### 配网模式轻量化启动 - BoxAudioCodec: 新增 output_only 模式，仅创建 I2S TX 通道（省 ~13KB DMA） 跳过 ES7210 ADC 初始化（省 ~2-4KB） - AudioCodec: 新增 StartOutputOnly() 方法，仅启用扬声器输出 - Application: 配网模式跳过 Opus 编码器、输入重采样器、协议初始化、 天气位置检测等网络业务 - 板级构造函数: 配网模式跳过电池检测、IMU传感器、PowerSaveTimer ### WifiBoard 配网流程修复 - NeedsProvisioning() 静态方法: 读取 NVS force_ap 和 SSID 列表， 用于提前判断配网模式 - force_ap 竞态修复: 构造函数不再清零 force_ap，改在 StartNetwork() 清零， 确保 NeedsProvisioning() 能正确读到 force_ap=1 - Application 缓存 provisioning_mode_ 成员变量，避免重复读 NVS ### BLE 配网重启修复 - 配网成功后用 esp_timer 延迟重启替代 xTaskCreate， 避免内存紧张时任务创建失败导致设备不重启 - 注释掉 WiFi 连接成功后的 MAC 地址发送步骤 ### sdkconfig 内存优化 - BT_ALLOCATION_FROM_SPIRAM_FIRST=y (BLE 动态分配优先 PSRAM) - SPIRAM_MALLOC_RESERVE_INTERNAL=32768 - NVS_ALLOCATE_CACHE_IN_SPIRAM=y - WiFi 静态缓冲区数量优化 (RX=10, TX=8) Co-Authored-By: Claude Opus 4.6 <noreply@anthropic.com>
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia
Breadboard demonstration:
Supported Open Source Hardware

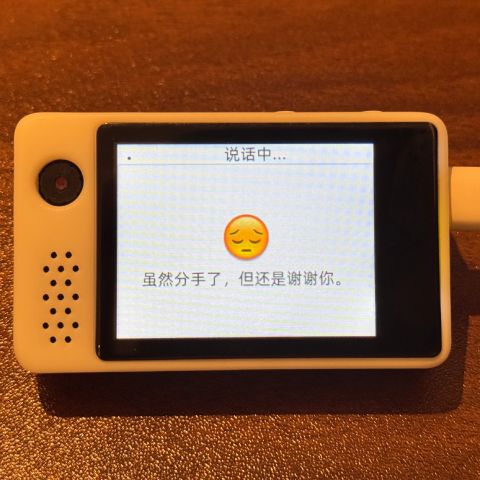

- LiChuang ESP32-S3 Development Board

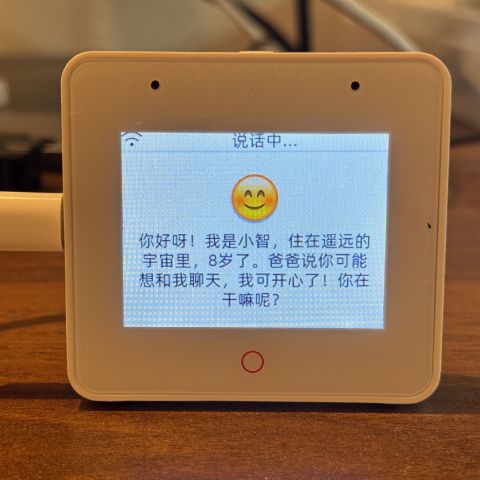

- Espressif ESP32-S3-BOX3

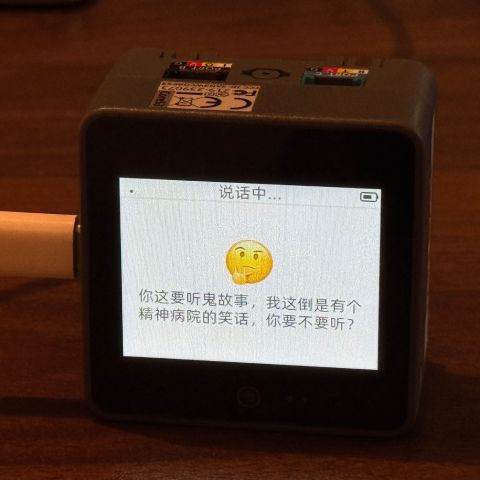

- M5Stack CoreS3
- AtomS3R + Echo Base

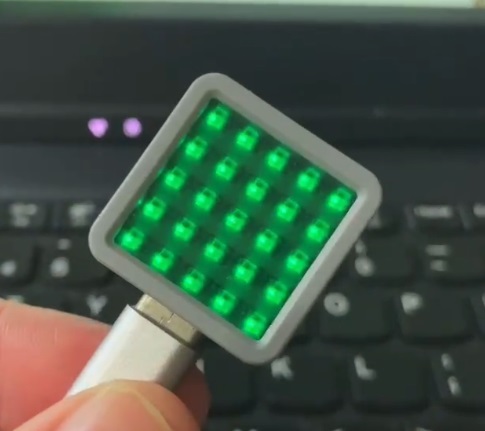

- AtomMatrix + Echo Base
- Magic Button 2.4

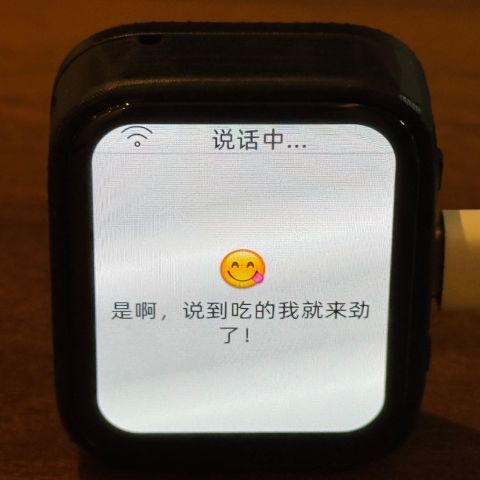

- Waveshare ESP32-S3-Touch-AMOLED-1.8
- LILYGO T-Circle-S3

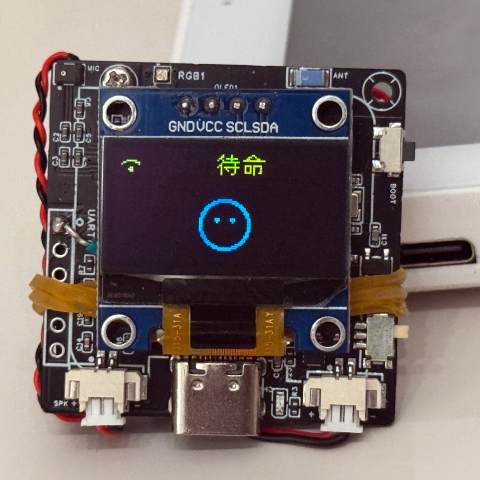

- XiaGe Mini C3

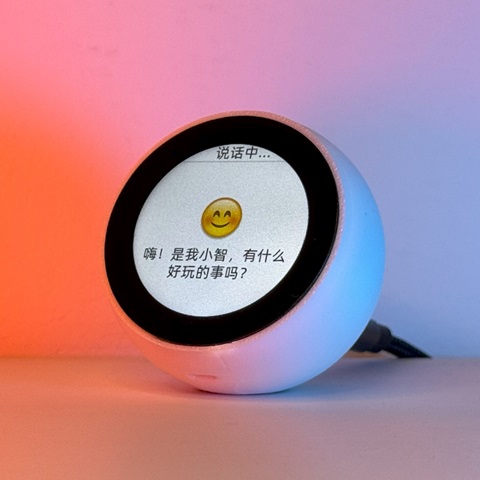

- Moji XiaoZhi AI Derivative Version

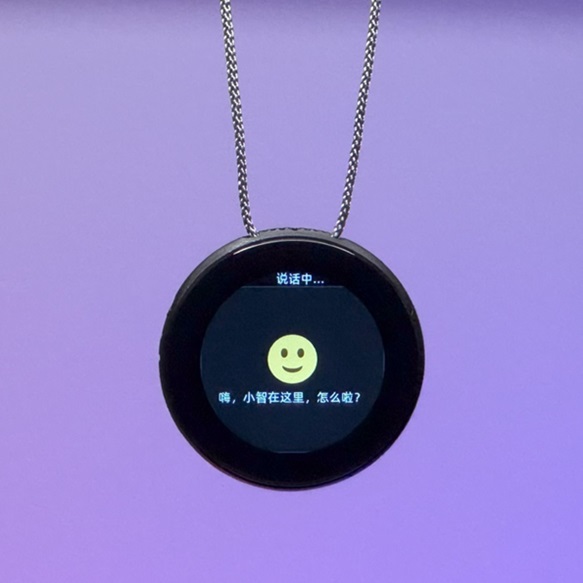

- CuiCan AI pendant
- WMnologo-Xingzhi-1.54TFT

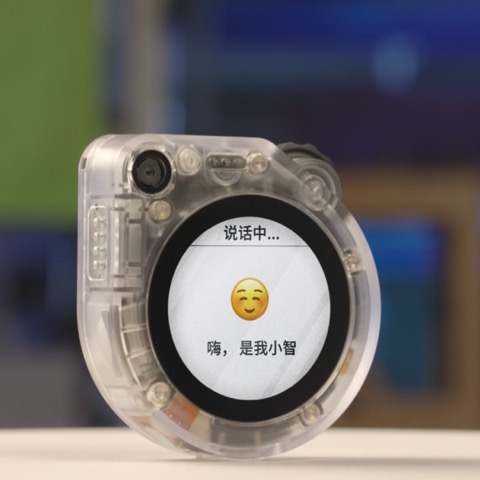

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
