源代码变更: - main/dzbj/bg_gif_demo.c/h: 方案 C 最终实现 - JPG 背景图(lv_img) + 透明 GIF(lv_gif) 叠加 - main/dzbj/dual_gif_demo.c/h: 方案 B 中间产物 - 双 GIF 循环切换 - main/dzbj/sprite_demo.c/h: 方案 A 已弃用 - DMA 直写 GRAM 与 LVGL 争抢 LCD IO 失败 - main/dzbj/ai_chat_ui.c: 集成 USE_BG_GIF_POC 开关，加载背景图+透明 GIF - main/dzbj/lcd.c: panel_handle 移除 static，便于其他模块访问 - main/CMakeLists.txt: 新增 3 个 dzbj 模块编译 资源新增: - spiffs_image/Background_360x360.jpg: 设备背景图(20KB) - spiffs_image/hiyori_m05.gif: Cubism Editor 直接导出的透明 GIF(2.3MB) - docs/Rtc_AIavatar/: Live2D 模型(Hiyori/Haru) + 32 段 Haru GIF + 方案文档第18章 PoC 实战记录 - tools/sprite_poc/: Python GIF→RGB565 转换脚本 踩坑要点(详见 docs/Rtc_AIavatar 第18章): - PIL Image.quantize() 会破坏 RGBA 透明度，必须改用 gifsicle - PIL 保存动画 GIF 仅第1帧有透明，后续帧不透明 - LVGL gifdec 按帧读取 - Cubism Editor 直接导出 GIF 才能逐帧保留透明信息(FREE 版限制部分模型) - gifsicle --lossy 会严重锯齿化，去掉只保留 --colors 256 + -O3 即可 - 裁剪居中需用全帧 bbox 不能只看第1帧(Live2D 角色每帧位置有偏移) - LVGL 默认不支持 PNG，背景图用 JPG + esp_jpeg 解码到 RGB565 buffer - 透明 GIF 显示黑色背景: gifdec.c canvas 初始化 alpha 须改为 0x00
XiaoZhi AI Chatbot
Introduction
👉 Build your AI chat companion with ESP32+SenseVoice+Qwen72B!【bilibili】
👉 Equipping XiaoZhi with DeepSeek's smart brain【bilibili】
👉 Build your own AI companion, a beginner's guide【bilibili】
Project Purpose
This is an open-source project released under the MIT license, allowing anyone to use it freely, including for commercial purposes.
Through this project, we aim to help more people get started with AI hardware development and understand how to implement rapidly evolving large language models in actual hardware devices. Whether you're a student interested in AI or a developer exploring new technologies, this project offers valuable learning experiences.
Everyone is welcome to participate in the project's development and improvement. If you have any ideas or suggestions, please feel free to raise an Issue or join the chat group.
Learning & Discussion QQ Group: 376893254
Implemented Features
- Wi-Fi / ML307 Cat.1 4G
- BOOT button wake-up and interruption, supporting both click and long-press triggers
- Offline voice wake-up ESP-SR
- Streaming voice dialogue (WebSocket or UDP protocol)
- Support for 5 languages: Mandarin, Cantonese, English, Japanese, Korean SenseVoice
- Voice print recognition to identify who's calling AI's name 3D Speaker
- Large model TTS (Volcano Engine or CosyVoice)
- Large Language Models (Qwen, DeepSeek, Doubao)
- Configurable prompts and voice tones (custom characters)
- Short-term memory, self-summarizing after each conversation round
- OLED / LCD display showing signal strength or conversation content
- Support for LCD image expressions
- Multi-language support (Chinese, English)
Hardware Section
Breadboard DIY Practice
See the Feishu document tutorial:
👉 XiaoZhi AI Chatbot Encyclopedia

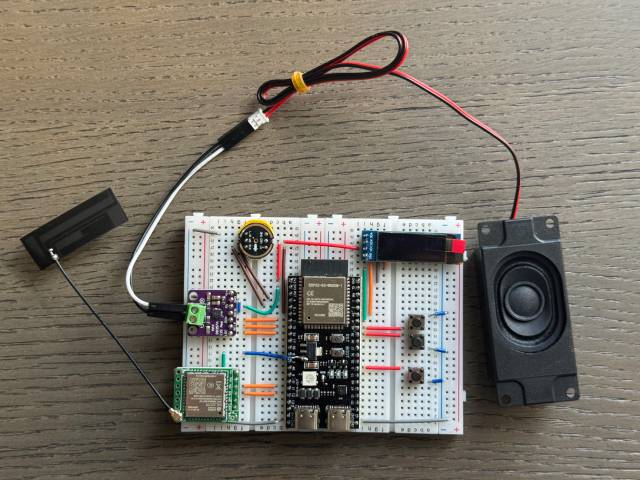

Breadboard demonstration:
Supported Open Source Hardware

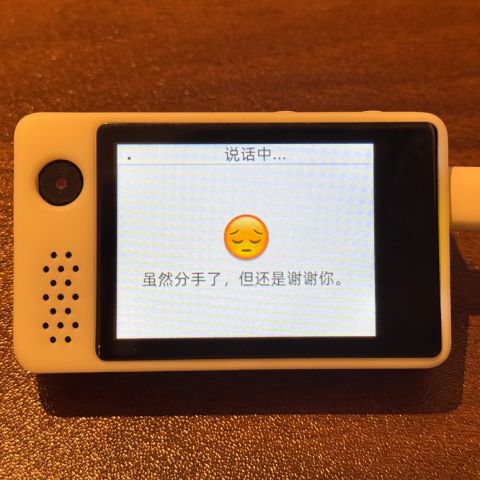

- LiChuang ESP32-S3 Development Board

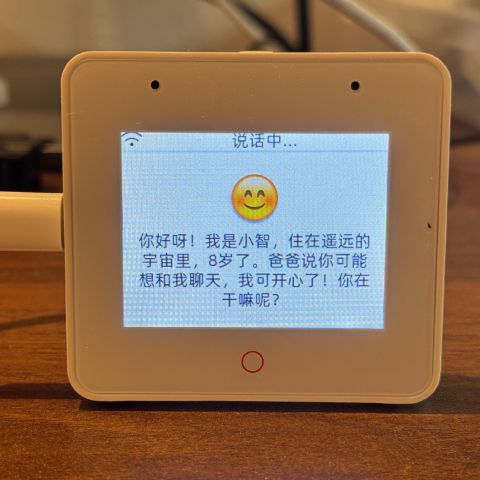

- Espressif ESP32-S3-BOX3

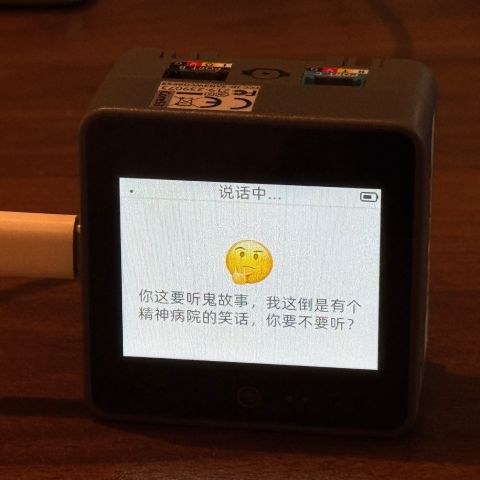

- M5Stack CoreS3

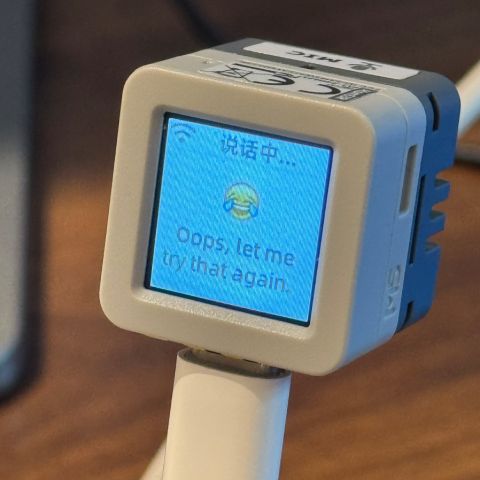

- AtomS3R + Echo Base

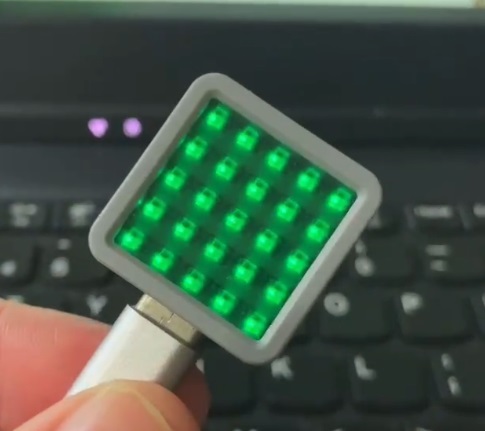

- AtomMatrix + Echo Base

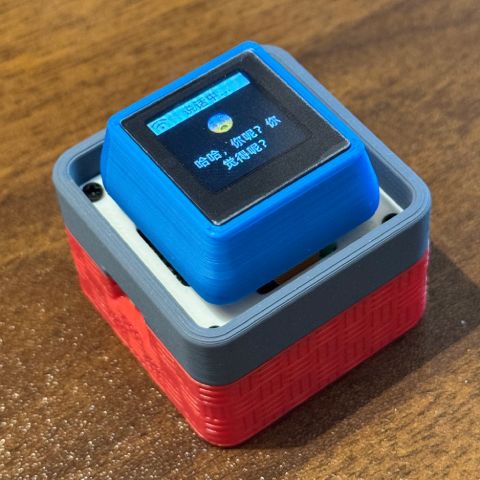

- Magic Button 2.4

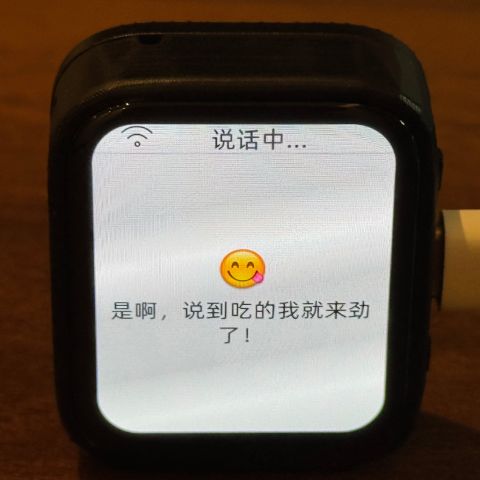

- Waveshare ESP32-S3-Touch-AMOLED-1.8

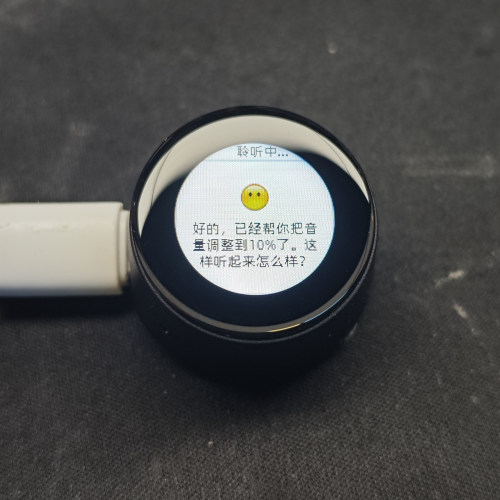

- LILYGO T-Circle-S3

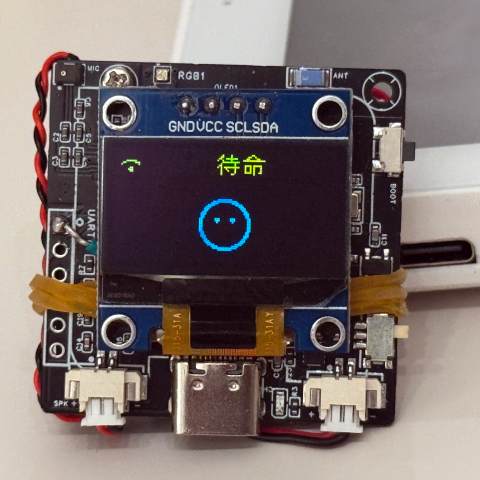

- XiaGe Mini C3

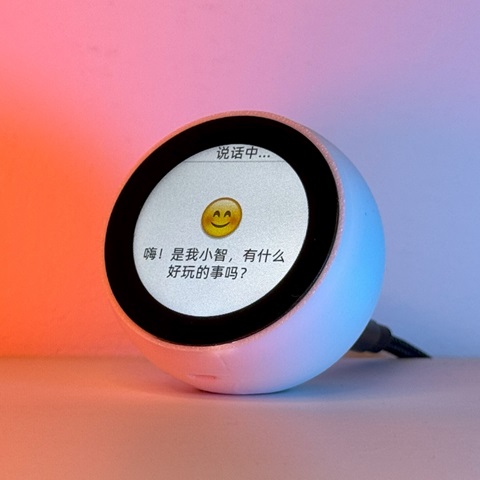

- Moji XiaoZhi AI Derivative Version

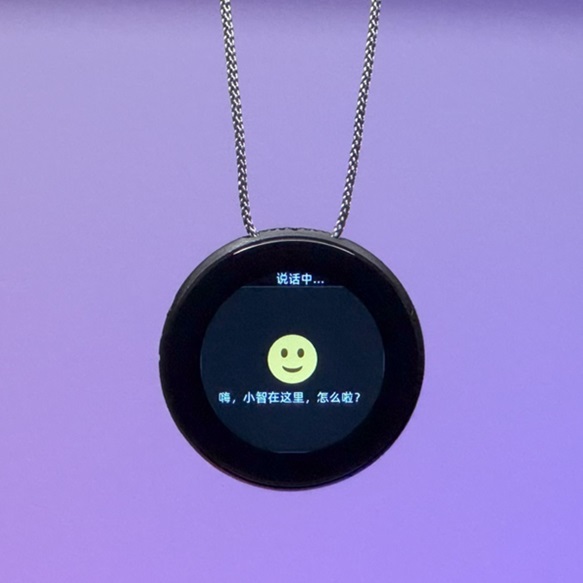

- CuiCan AI pendant

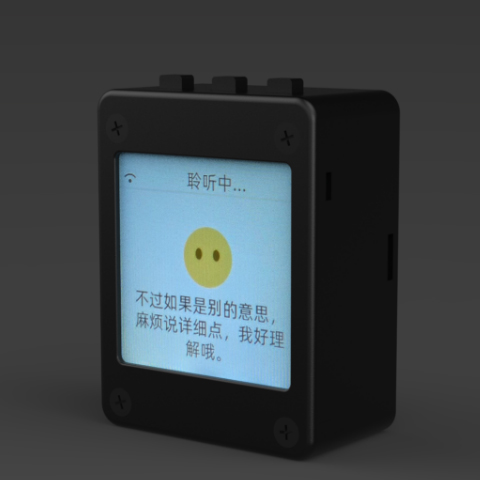

- WMnologo-Xingzhi-1.54TFT

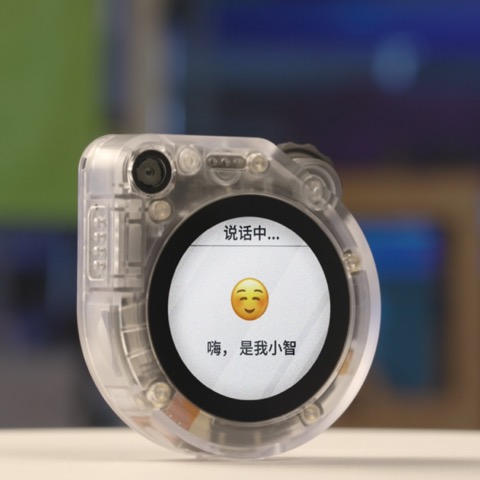

- SenseCAP Watcher
Firmware Section
Flashing Without Development Environment
For beginners, it's recommended to first use the firmware that can be flashed without setting up a development environment.
The firmware connects to the official xiaozhi.me server by default. Currently, personal users can register an account to use the Qwen real-time model for free.
👉 Flash Firmware Guide (No IDF Environment)
Development Environment
- Cursor or VSCode
- Install ESP-IDF plugin, select SDK version 5.3 or above
- Linux is preferred over Windows for faster compilation and fewer driver issues
- Use Google C++ code style, ensure compliance when submitting code
Developer Documentation
- Board Customization Guide - Learn how to create custom board adaptations for XiaoZhi
- IoT Control Module - Understand how to control IoT devices through AI voice commands
AI Agent Configuration
If you already have a XiaoZhi AI chatbot device, you can configure it through the xiaozhi.me console.
👉 Backend Operation Tutorial (Old Interface)
Technical Principles and Private Deployment
👉 Detailed WebSocket Communication Protocol Documentation
For server deployment on personal computers, refer to another MIT-licensed project xiaozhi-esp32-server
